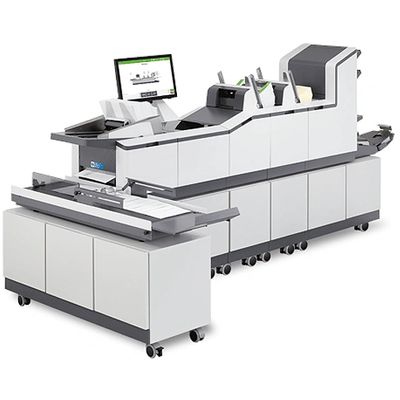

Formax FD7202 Series High-Volume Folder and Inserter
Specification
- Modular Design: Flexibility to add feed stations, from 1 to 11.
- Intuitive User Interface: 22" color touchscreen, with context-sensitive help on every screen.
- Quick and Easy Setup: Automatic job setup with document & envelope library.
- Programmable Jobs: Unlimited.
- Flats Insertion: Inserts into landscape format flat envelopes, up to 10" x 13".
- Versatile: Inserts sets of up 50 sheets into flats, and thin booklets up to 6mm thick.
- Fast: Processes up to 5,000 envelopes per hour.
- Duty Cycle: Up to 200,000 envelopes per month.
- Powerful Folding Capacity: Folds up to 8 sheets at a time.
- Fold Types: C, Z, Half, Double Parallel and no fold.
- Auto Fold Plate Adjustment: Simply set the first fold plate and the second sets itself automatically.
- Document Feeder Capacity: Standard up to 500 each, high capacity up to 1,000 each.
- Envelope Feeder Capacity: Up to 800 #10 or 6" x 9" envelopes, up to 500 10" x 13" landscape flats.
- Double Document Detection: Mechanical, more accurate than light-based sensors.
- High-Capacity Output: 4-foot Output Conveyor can be used straight-on or at 90° to the system.
- Continuous Operation: Versatile Feeders are bottom-feeding for reloading on-the-fly.
- Accumulation/Divert Deck: High-speed/capacity accumulator, divert tray holds up to 300 sheets.
- Daily Mail Mode: Dedicated semi-automatic feed tray allows for feeding stapled or unstapled sets.
- Cascade Mode / Feeder Auto Re-Start: Feeders can be linked to process up to 2,000 continuous sheets, and contain sensors for auto-start after refilling .
- Custom Cabinets: Ergonomically designed, moveable storage.
- Optional Intelligence Features:
- Single or Multi-Code Reading Licenses: Available for Tower Feeder and versatile feeders, able to read Single-Track OMR, Dual-Track OMR, 1D Barcode, 2D Data Matrix.
- 2-Sided Code Reading: Single or double Tower CIS scanners read both sides of the sheet for maximum compatibility, allowing for face-up or face-down sheet feeding.
- Optional Features:
- High-Capacity Versatile Feeders: Process inserts up to 6mm thick, available with or without Intelligence.
- Output Options: Envelope Sorter/Diverter, Catch Tray, Sorter Catch Tray.
- Model Options:
- Special 1F - Inserter w/Tower Feeder - Includes one 1,000 sheet Flex-Feeder, 22" Color Touchscreen, Accumulator/Divert, Cabinets, Conveyor
- Special 2 - Inserter w/Tower Feeder - Includes two 500-sheet Flex-Feeders, 22" Color Touchscreen, Accumulator/Divert, Cabinets, Conveyor
- Special 2F - Inserter w/Tower Feeder - Includes two 1,000-sheet Flex-Feeders, 22" Color Touchscreen, Accumulator/Divert, Cabinets, Conveyor
- Special 3F - Inserter w/Tower Feeder - Includes two 500-sheet Flex-Feeders on top and one 1,000-sheet Flex-Feeder on Bottom, 22" Color Touchscreen, Accumulator/Divert, Cabinets, Conveyor
- Special 4 - Inserter w/Tower Feeder - Includes four 500-sheet Flex-Feeders, 22" Color Touchscreen, Accumulator/Divert, Cabinets, Conveyor
- HCVF - Inserter w/High-Capacity Versatile Feeder (HCVF) and Cover, 22" Color Touchscreen, Cabinets, Conveyor
