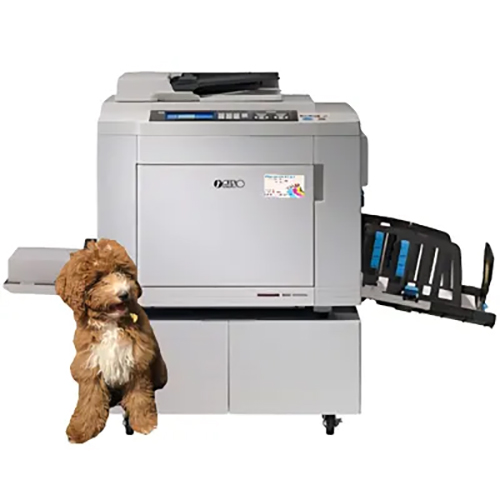

Riso MH 9450 Digital Duplicator
Specification
Add a second color to your documents quickly, easily, and economically and deliver new levels of value, impact and profitability.
Increase the effectiveness of you communications bu adding color to emphasize key ideas and information. The RISO9450 single-pass, two-color digital duplicator empowers graphic artists and print shop owners to produce high-impact spot color documents quickly, easily and economically.
Specification
High-speed digital master-making/fully automatic printing
Book or sheet
Scanning: 600 dpi × 600 dpi
Printing: 600 dpi × 600 dpi
Quick Master Making Mode: 600 dpi × 400 dpi
Line, Photo (Standard/Portrait)
Duo (Standard/Line/Photo/Shadow off)
Pencil (Darker/Lighter)
Fully automatic (1,000 ml per cartridge)
Color touch panel
RISO MF/SF Drum, RISO Auto Document Feeder VII, Job Separator IV; NIII, RISO Controller IS300, Card Feed Kit (Compatible with paper weight 27-lb bond to 221-lb index (100gsm – 400gsm), Envelope Feeder (Compatible with paper weights 13-lb bond to 32-lb bond (50gsm – 120gsm), RISO Stand D Type III (Deluxe and with doors for convenient storage with a neat appearance), RISO Stand N Type III (Sturdy open-front stand also offers convenient storage of consumables), IC Card Reader Activation Kit RG, Wide Stacking Tray (Allows use of paper up to 21 27/32 inches (555mm) in long edge.), RISO AUTO-CONTROL STACKING TRAY II, RISO Printer driver for Macintosh
Image, Contrast, Size, Paper Size Detection, D-Feed Check, Dot Process, Contrast Adj, Tone Curve, Layout, Multi-Up Print, 2 Up, Book Shadow, Top Margin Adj., Binding Margin Adj., Max. Scan, Ink Saving, Quick Master Making, Preview, ADF Semi-Auto*5, Storage, Overlay, Print Speed Adjustment, Print Density Adjustment, Print Position Adjustment, Interval, Renew Page, Auto Page Renewal, Rotate, Special Paper Ctrl, Output reversal, Scanning Side -ADF*5, Paper Memory Print, Program, Job Separation*6, Slip sheet sorting, Job Memory, Reservation, Editor, Idling Action, Confidential, My Direct Access, Meter Display, ID Counter Report, Proof Copy, Direct Printing, USB Job List, Scanning Mode, Admin., Auto Sleep, Auto Power-OFF, Power-OFF Schedule, ECO mode, Protect, RISO iQuality System
AC 100-240 V, 50-60 Hz <5.0-2.2 A>
Max. 430 W (AC 100-120 V), 400 W (AC 220-240 V), Ready: 40 W or lower, Sleep: (Standard) 5 W or lower, (Low) 0.5 W or lower, Power-OFF: 0.5 W or lower
Specification
Technology
High-speed digital master-making/Fully automatic printing
Control Panel Type
LCD Panel
Product Category
A3 Color
Original Type
Book or sheet
Engine Speed
150 ppm
First Page Out Time (print/copy)
17 seconds
Resolution
600 x 600 dpi
Electrical Requirements
AC 100-120 V 3.4 A, AC 220-240 V 1.6 A, 50-60 Hz
Dimensions (W x D x H)
55 23/32 inches × 26 3/8 inches × 41 15/16 inches
Mainframe Weight
221 lb
Power Consumption
Standard: Max.: 300 W, Ready: 20 W or lower, Sleep: 5 W or lower, Power-OFF: 0.5 W or lower
Input Capacity (std/max)
1,000 sheets
Output Capacity (std / max)
1,000 sheets
Maximum Paper Size
12 7/32 inches × 17 inches
Supported Paper Weights
12-lb bond to 42-lb bond
Standard Interface
Ethernet 1000BASE-T, 100BASE-TX, 10BASE-T
Specification
Technology
High-speed digital master-making/Fully automatic printing
Control Panel Type
Color touch panel
Product Category
A3 Color
Original Type
Book or sheet
Engine Speed
190 ppm
First Page Out Time (print/copy)
15 seconds
Resolution
600 x 600 dpi
Electrical Requirements
AC 100-240 V, 50-60 Hz <3.4-1.6 A>
Dimensions (W x D x H)
55 23/32 inches × 26 3/8 inches 8× 41 15/16 inches
Mainframe Weight
225 lb
Power Consumption
Max.: 300 W, Ready: 20 W or lower, Sleep: 5 W or lower, Power-OFF: 0.5 W or lower
Input Capacity (std/max)
1,000 sheets
Output Capacity (std / max)
1,000 sheets
Maximum Paper Size
3 15/16 inches × 5 13/16 inches to 12 19/32 inches × 17 inches
Supported Paper Weights
12-lb bond to 116-lb index
Standard Interface
Ethernet 1000BASE-T, 100BASE-TX, 10BASE-T (2ch)
Specification
Print Type
Line-type inkjet system
Ink Type
Oil-based pigment ink (Cyan, Magenta, Yellow, Black)
Print Resolution
Standard: 300 dpi (main scanning direction) × 300 dpi (sub-scanning direction)
Fine: 300 dpi (main scanning direction) × 600 dpi (sub-scanning direction)
Number of Gray Levels
For each CMYK color (11 gray levels)
Data Processing Resolution
Standard: 300 dpi x 300 dpi
Fine: 600 dpi x 600 dpi
Line smoothing: 600 dpi × 600 dpi
PDL (Page Description language)
RISORINC/C IV
Supported Protocols
TCP/IP, HTTP, HTTPs (TLS), DHCP, FTP, LPR, IPP, SNMP (SNMP v1), Port 9100 (RAW port), IPv4, IPv6, IPSec (IKEv1)
Supported Operating Systems
Microsoft®: Windows®, Windows Server®
Optional Operating Systems
(Optional PS Kit FG10 or ComColor Express RS1200C is required.)
Mac: macOS
Linux (compatible with PPD only)
Network Interface
Ethernet 1000BASE-T/100BASE-TX/10BASE-T×2 Channel
Memory Capacity
4GB
Hard Disk
(One gigabyte (GB) is calculated as 1 billion bytes.)
Capacity: 500GB
Available Space: Approx. 430 GB
Operating System
Linux
